Replacing The Front Spoiler

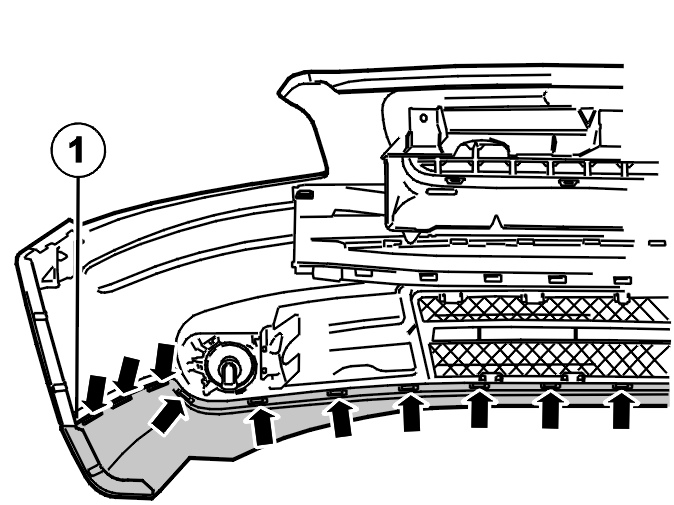

Fig 1: Locating Clips And Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 19 catches
• the 2 clips (1) at the end on the inside of the bumper cover. The clips hold the lower section in place.

Remove the spoiler from the bumper cover.

Clean the surfaces of the bumper cover where the new spoiler section is to be secured.

Press the new spoiler section into place on the bumper cover.

Check that all the catches engage.
