Vehicles Late Version

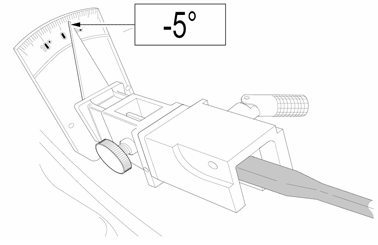

Fig 1: Identifying Arm In Adaptor And Protractor

Courtesy of VOLVO CARS OF NORTH AMERICA.

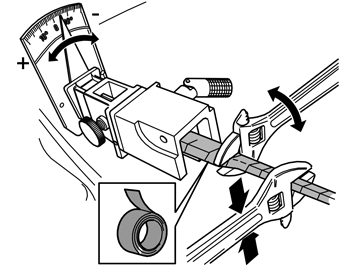

Fig 2: Adjusting Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Use suitable tape to protect the wiper arm.

NOTE:

Make sure that the 3 marked points of the special tool are in contact with the glass.

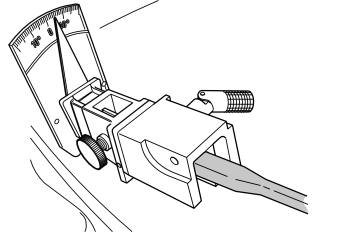

Fig 3: Identifying Measurement

Courtesy of VOLVO CARS OF NORTH AMERICA.
