Cable Routing

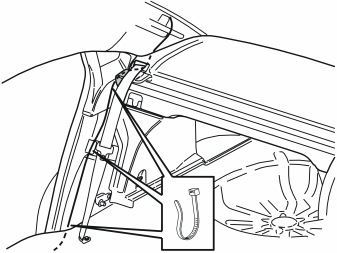

Fig 1: Securing Antenna Cable With Tie Straps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the antenna cable down along the existing wiring on the parcel shelf, inside the insulation, to the right hand rear door sill. Route the antenna cable forward inside the floor carpets, the lower panel on the B-post and forward to the front edge of the door opening for the right hand front door
Secure the wiring behind the C-post panels. Use three tie straps from the kit.
NOTE:
Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

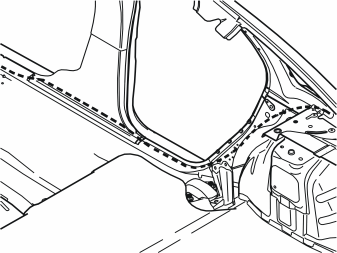

Fig 2: Ensuring Cable Is Positioned So There Is No Risk Of Catching Or Rubbing

Courtesy of VOLVO CARS OF NORTH AMERICA.

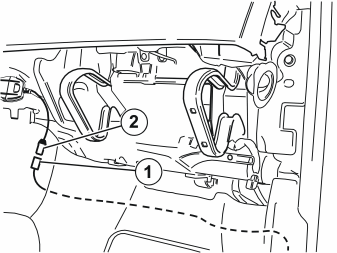

Fig 3: Identifying Antenna Cable Routed Under Carpet And Forward To Short Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Route the antenna cable (1) under the carpet on the right hand side of the front seat and forward to the short cable (2) in the large connector screwed to the center console. If another antenna cable is already connected there disconnect that antenna cable and tie it up so that it will not rattle.
NOTE:
When the phone is attached to the roof antenna it may be necessary to remove the sound insulation on the left hand side to access the antenna connector. It is located by a screw and two clips in the upper side and two screws in the underside of the dashboard. The connector for the courtesy lighting and air quality sensor must be removed.
Connect both the connectors to each other.
