Front Position Sensor, Headlamp (2004-2007): Remove

NOTE:

Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Follow instructions for lifting points body frame, see JACKING POINTS BODY

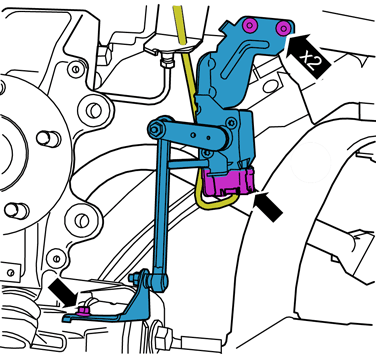

Fig 2: Identifying Front Position Sensor, Headlamp Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Torque: M6

10 Nm
