Reverse Warning System: Notes

Illustration A applies to the S40

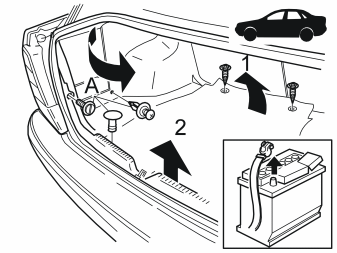

Fig 1: Identifying Cargo Compartment Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of the anti-theft protection radio code if applicable
Switch off the ignition
Disconnect the battery negative lead
Remove the 2 screws, the cargo compartment carpet and the rear wall panel
Remove the clip (A) and turn the rear panels inwards on the left and right-hand sides.
Remove the entire left-hand panel in the cargo compartment.
