Reverse Warning System: Installation

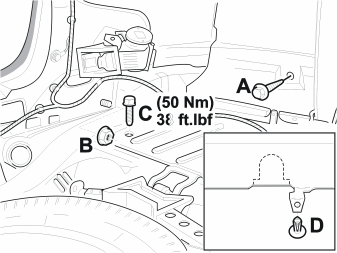

Fig 1: View Of Chassis Screw And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Install the screw (C) and nuts (A and B). Hand tighten
• Tighten screw (C). Tighten to 50 Nm (37 lbf. ft)  . Tighten the nuts (A and B). Tighten to 5 Nm (4 lbf. ft)  . Tighten on both the left and right hand sides.

Applies to cars up to chassis number 600 000

• Install the clip (D) on the underneath of the bumper.

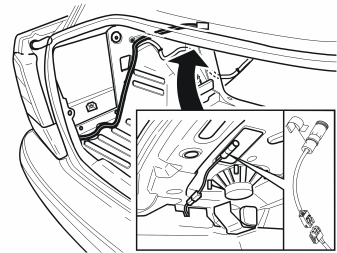

Fig 2: Identifying Splashguard Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the connector for the side marker lamp
• Install the screw (A)
• Reinstall the 3 mounting screws / clips for the splashguards
• The procedure is the same for both the left and right hand sides.

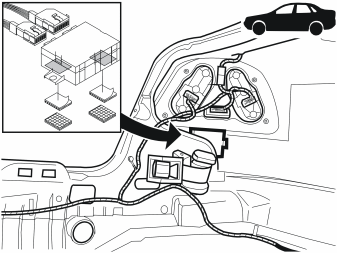

Fig 3: Identifying Control Module Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the 12 and 16-pin connectors to the control module
• Remove the backing and apply the double-sided adhesive tape to the control module
• Remove the backing tape and install the control module as illustrated
• Secure the control module using a little force.

Fig 4: Identifying Cable Harness To The Left Rear Loudspeaker

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Route the 2-pin connector along the existing cable harness to the left rear loudspeaker
• Secure one clip on the buzzer. Secure the clip on the edge of the left-hand loudspeaker panel
• Connect the connector.
