Reverse Warning System
>>
Ground
Reverse Warning System: Ground

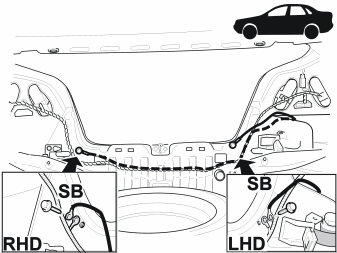

Fig 1: Identifying Cable Ground Locations
Courtesy of VOLVO CARS OF NORTH AMERICA.
Connect the cable terminal to the black (SB) cable
Connect the black (SB) cable to ground on the tail lamp
Secure all cables using tie straps.
Courtesy of VOLVO CARS OF NORTH AMERICA.
