Parking Assistance, Rear: Installation

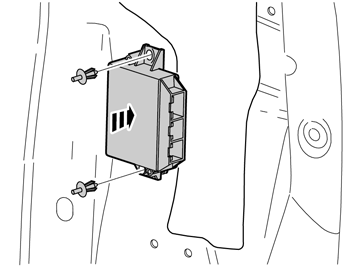

Fig 1: Installing Control Module On Right-Hand Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Install the control module on the right-hand side of the cargo compartment.
• Secure it using the clips in the existing holes.

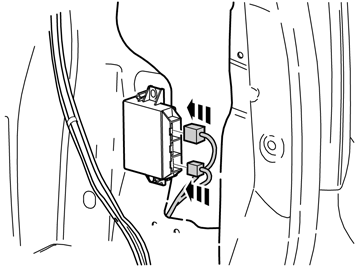

Fig 2: View Of Control Module's Upper/Lower Port

Courtesy of VOLVO CARS OF NORTH AMERICA.

• black connector to the control modules upper port.
• brown connector to the control modules lower port.

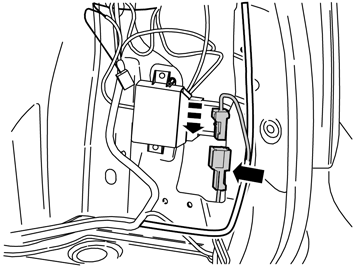

Fig 3: Identifying 6-Pin Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Disconnect the existing 6-pin connector from the car's normal cable harness.

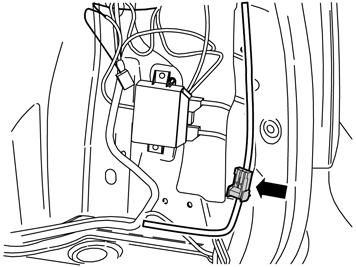

Fig 4: View Of Parking Assistance Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the connector to the cable harness for parking assistance.
• Secure the connectors to the panel edge.

Applies to cars with the Keyless system

• Plug the gray connector into the corresponding gray connector.
