Parking Assistance, Rear: Finishing

Fig 1: View Of Ignition Key In 0 Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Set the ignition key to position 0 .

NOTE:

Wait at least one minute before unplugging the connectors or removing other electrical equipment.

Fig 2: Identifying Cargo Compartment Carpet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cargo compartment carpet.

Fig 3: Identifying Upper Floor Supports

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the upper floor supports from the car (if applicable).

Fig 4: Identifying Tailgate Sill Trim Panel Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the two external clips at the front edge/bottom edge of the sill trim panel on the tailgate.
Pry up one of the corners of the sill trim panel using a weatherstrip tool so that the two clips at that end release.
Pull up the sill trim panel at the other end so that the remaining two clips release. Remove the sill trim panel.

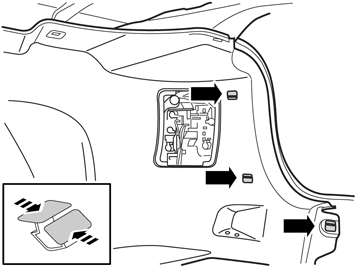

Fig 5: Identifying RH Side Panel Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the three clips that hold the right-hand side panel.

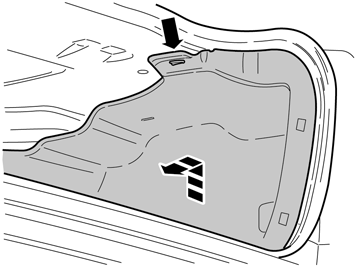

Fig 6: Identifying Parcel Shelf Hook

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the side panel from the mounting underneath the parcel shelf and lift out.

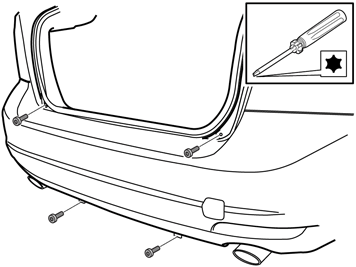

Fig 7: Identifying Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the four bumper screws.

Fig 8: Identifying Rear Edge Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the five screws (1) holding the bumper cover at the rear edge of the wing liner in the rear wheel arch. Repeat on the other side.

Fig 9: View Of Bumper Cover Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the end of the bumper cover. Grasp the bumper cover inside the wing liner. Pull carefully until the six catches at the top edge release. Repeat on the other side.

Fig 10: Removing Bumper Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bumper cover by pulling it straight backwards.
NOTE:
It is recommended that two people lift down the bumper cover.
Place the bumper cover on an underlay which will not damage the paint.

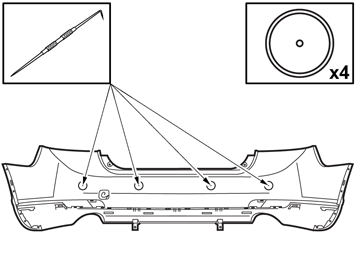

Fig 11: Marking Inside Of Bumper Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a mark in the center of the markings on the inside of the bumper cover using a scriber.

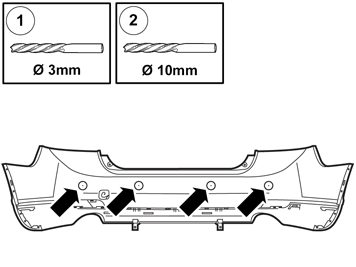

Fig 12: Identifying Drilling Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drill out the center of the markings.
1. 1. Ø 3 mm (7/64 ")
2. 2. Ø 10 mm (25/64 ")

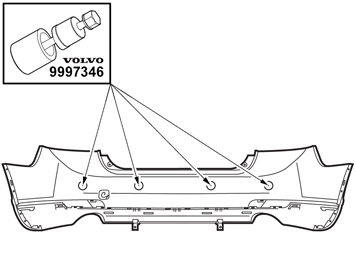

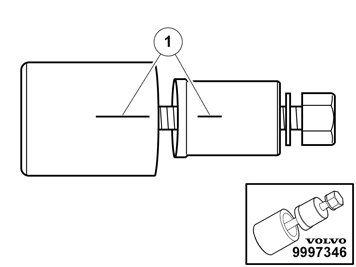

Fig 13: Identifying P/N 9997346

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use hole tool part no. 9997346 to make holes in the bumper cover. Check that the markings (1) are opposite each other when using the tool.

Fig 14: Cutting Holes In Bumper Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Place the hole tool's support sleeve on the inside, and the cutting part on the outside of the bumper cover.

Make the holes in the bumper cover using the hole tool.
Screw the hole tool together until it has cut the hole in the bumper cover.
Remove the plastic pieces from the hole tool and make the remaining holes in the same way.

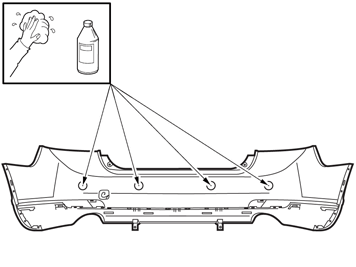

Fig 15: View Of Sensor Cradle Cleaning Area

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the inside of the bumper cover using a mild soap solution.
Clean an area around the holes that is slightly larger than the sensor cradle. Use: Isopropanol.
Allow to dry.

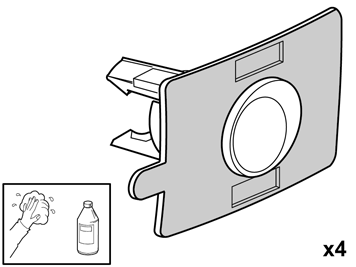

Fig 16: Cleaning Sensor Cradle Surfaces

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the cradles on the surfaces as illustrated. Use: Isopropanol.
Allow to dry.

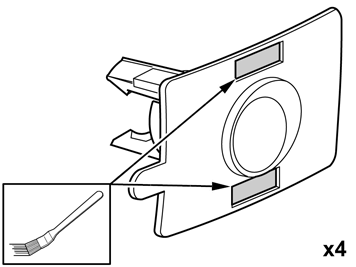

Fig 17: Identifying Sensor Cradle Tape Surfaces

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a thin and even layer of activator to the cleaned surfaces where the tape is to be attached. Use: 8637076.
Allow to dry for about 10 minutes.

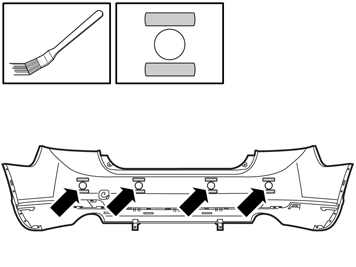

Fig 18: Applying A Layer Of Activator

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a thin and even layer of activator. Use: 8637076 Activator.
Allow to dry for at least 10 minutes.

Fig 19: Identifying Rubber Grommet For Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rubber grommet from the hole in the car, it shall not be re-used.
