Instrumentation - Installation Instructions, Accessories (544 Body)
>>
Parking Assistance, Rear (2008-2011)
>>
Parking Assistance, Rear
>>
Applies To Cars With The Keyless System
Applies To Cars With The Keyless System

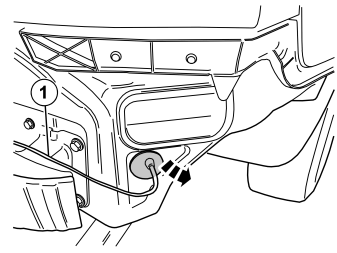

Fig 1: View Of Cable Disconnect
Courtesy of VOLVO CARS OF NORTH AMERICA.
Disconnect the cable (1) at both ends and remove it. It will no longer be used. The cable is internally connected to a gray connector below the right tail lamp.
