Applies To Cars With TRM Or TRM Combined With AEM

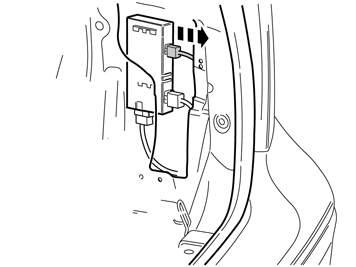

Fig 1: View Of Green Connector To The TRM

Courtesy of VOLVO CARS OF NORTH AMERICA.

The car's usual green connector is connected to the TRM. Disconnect this connector.

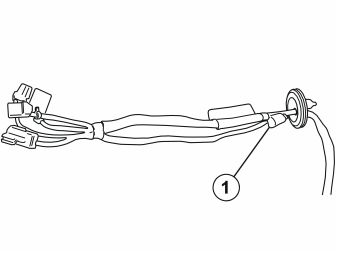

Fig 2: Identifying Taped Connector To Cable Harness For PAM

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the removed connector to the taped connector (1) on the cable harness for PAM.
Connect the other connector from the cable harness for PAM to the TRM.

NOTE:

It is important that the Parking Assistance Module (PAM) is connected as the first module and that the cable harnesses are connected correctly, and not in a loop.
