Removing The Wheel Sensor Rear Right-Hand Side

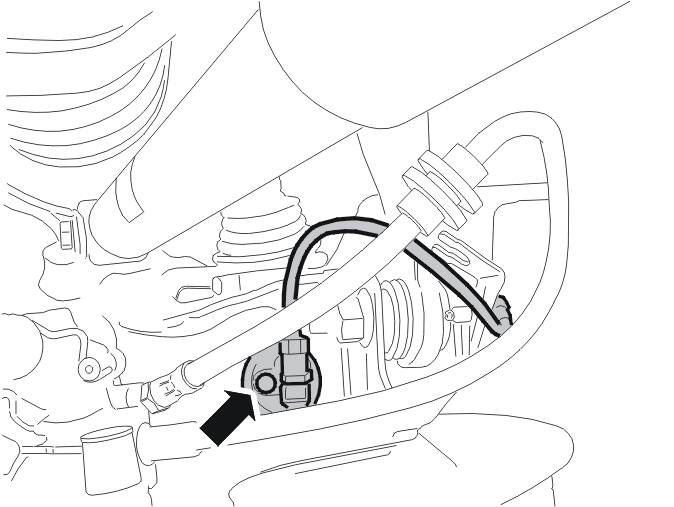

Fig 1: Identifying Rear Wheel Speed Sensor
GLL146114Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Blow clean thoroughly around the sensor with compressed air before removing it.

Remove the sensor mounting screw and allow to hang in place.
