Installing The Brake Caliper

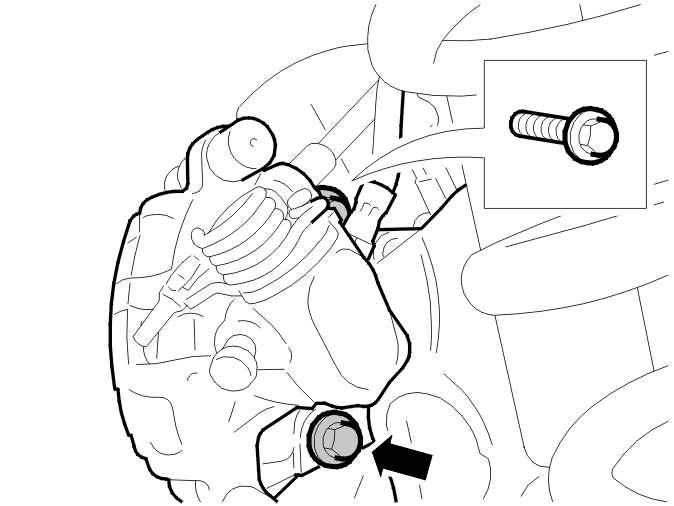

Fig 1: Locating Caliper Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install on both sides:

• the brake caliper
• the 2 screws. Tighten. See: TIGHTENING TORQUE
• the brake hose in its bracket.
