Removing heat deflector plate and member

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

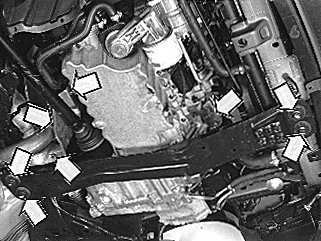

Fig 1: Identifying Heat Deflector Plate, Bracket, And Longitudinal Member Under Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Heat deflector plate from bracket on engine
Heat deflector plate bracket.
Longitudinal member under engine.
