Checking the carrier plate

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

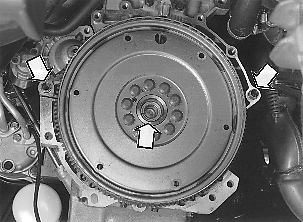

Fig 1: Checking Carrier Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check:

That the carrier plate is not damaged or cracked
That the mating surfaces between the transmission and the engine are clean
That the guide bushings are intact and in place.
That the torque converter bushing in the crankshaft is intact.
