Carefully remove the transmission from the engine

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

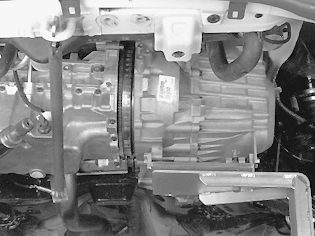

Fig 1: Removing Transmission From Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ensure that the transmission moves straight out from the engine, no deviations in the clutch driven plate center may occur. Lower the transmission as soon as the primary shaft is free of the clutch.
