Replacing relay in passenger compartment central electrical unit: Removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

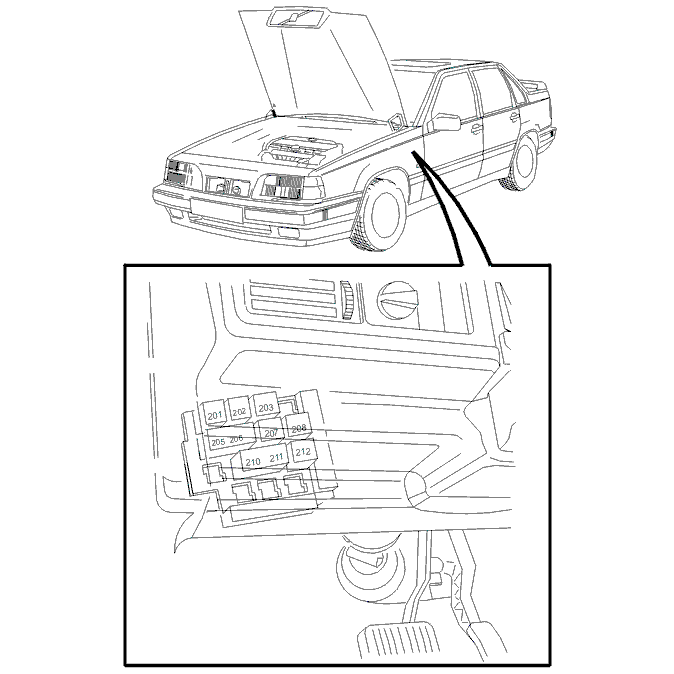

Fig 1: Locating Passenger Compartment Central Electrical Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

The passenger compartment central electrical unit is located on the driver's side under the soundproofing panel.

Remove:

battery negative lead.
soundproofing panel screws.
soundproofing panel.
