Adjusting The Hood

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLVO CARS OF NORTH AMERICA.

Front-rear, side to side, (rear edge):

Slacken off the screws. Position the hood in the correct position (remove the cover plate if necessary).
Tighten the screws. Tighten to 10 Nm.

Side to side (front edge):

Slacken off the mounting screws for the hood catch. Push the hood catch to the side as far as possible.

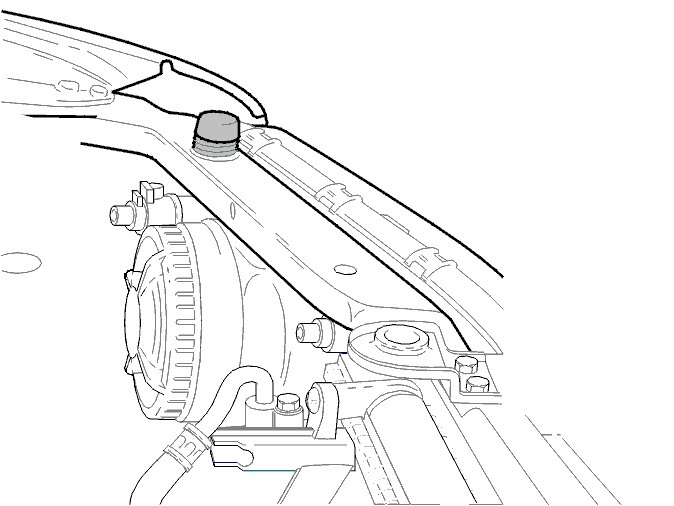

Vertically (front edge):

Turn the rubber dampers.
