Front Wing: Removal
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

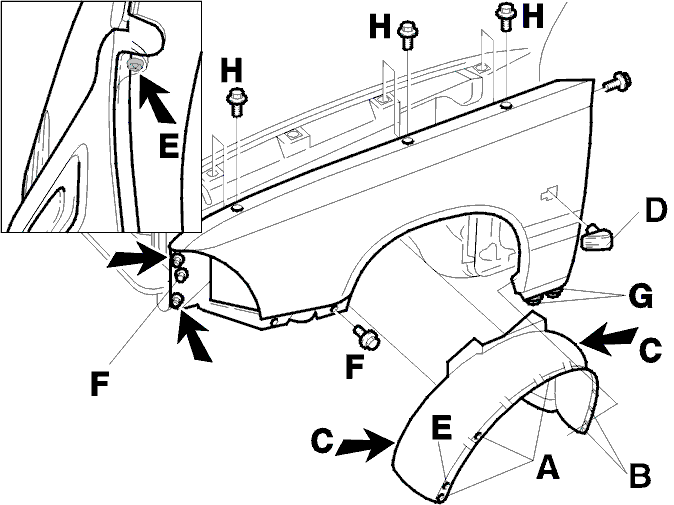

Remove:
- The wing liner: 3 plugs (A), 2 screws (B) and 2 bolts (C).
- Front indicator: remove the screw.
- Side indicator (D) on the wing.
- The sill trim.
- Bumper/wing connector screw (E).
- Mounting:
front; 2 bolts (F)
top; 3 bolts (H)
bottom; 2 bolts (G)
- Remove the seal (foam).
- Bolt behind front door hinge
- Remove the mud guard if fitted.
Carefully remove the front wing.
