Front Fender: Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

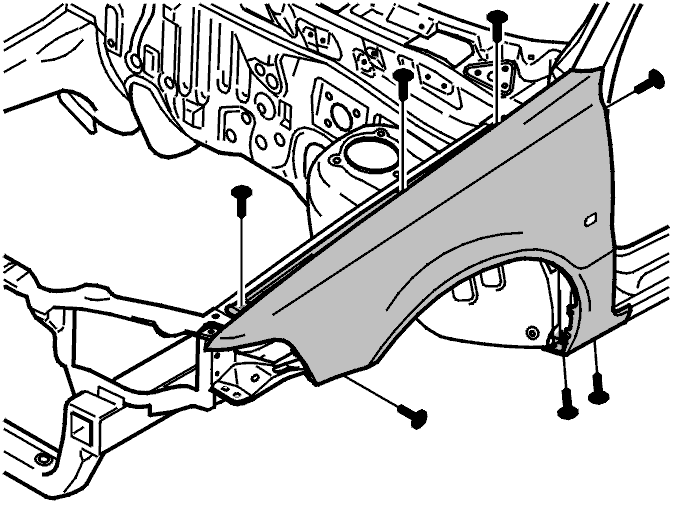

Fig 1: Removing Front Fender

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the fender liner according to Plastic fender liner
the screw for the turn signal lamp unit
the turn signal lamp unit
the side turn signal flashers on the fender
the three screws at the top
the two screws at the bottom
the foam seal
the screw behind the hinge for the front side door.

Fig 2: Bumper And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the bumper and front fender.

Bend the rear of the bumper down. Remove the screw (1).

Carefully remove the front fender.
