Installing the Spring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

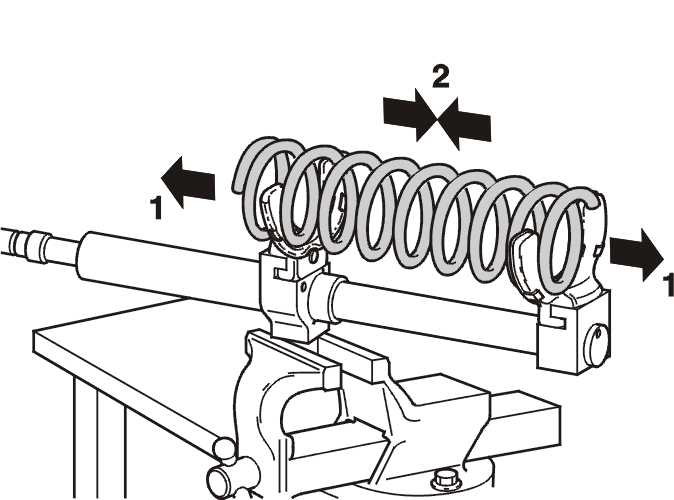

Fig 1: Identifying Coils On Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the spring.
Remove the spring. Note the location.
Place the tool's hooks over the 7 coils on the new spring (6 coils for Nivomat).
Tension the spring so that the shock absorber mounting can be installed again.

NOTE: The color code on the spring must be downwards towards the spring strut.
