Assembling Special Tools
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

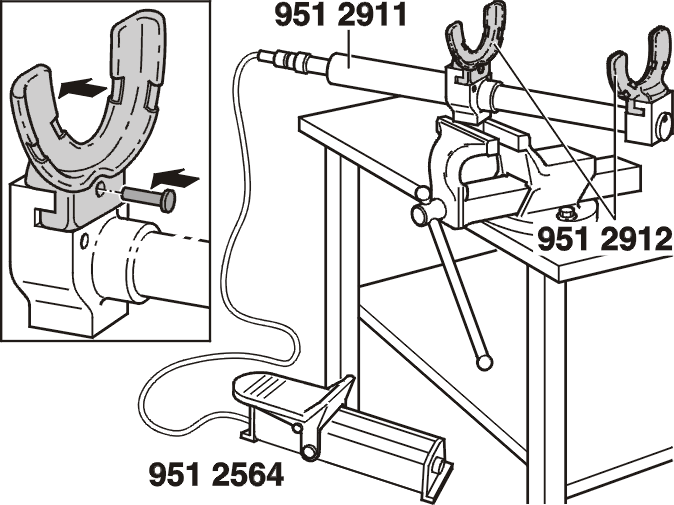

Secure the tool
9512911
in a vise.
Install both the spring holders
9512912
.
Remove the catch, move up the spring holders and reinstall the catch. If necessary, first remove the other holders.
Connect tool
9512564
or
9995576
to clutch hose
9512915
.
