Lowering the Front Axle Crossmember

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

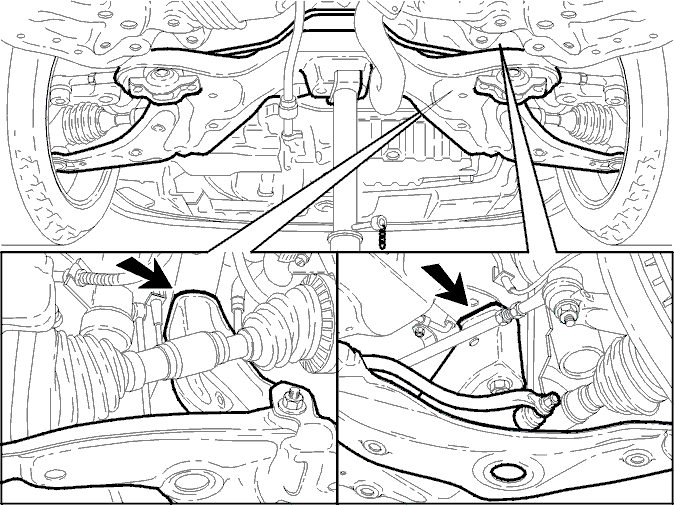

Fig 1: Front Axle Crossmember On Right And Left Sides Of Body Side At Front And Rear

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Mark up the position of the front axle crossmember on the right and left sides of the body side at the front and rear. This is to avoid adjusting the wheel alignment after finishing work.

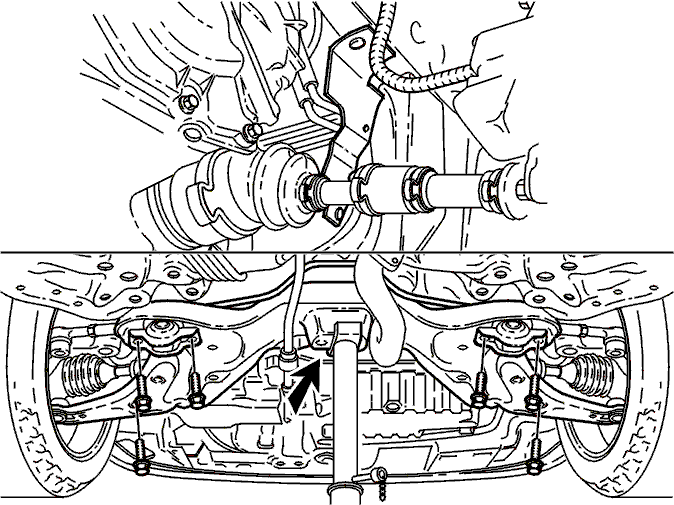

Fig 2: Transmission Jack Under Front Axle Crossmember

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a transmission jack under the front axle crossmember for support.
Remove the six screws.

Lower the front axle crossmember to gain access to the anti-roll bar mountings.
