Installing the Anti-Roll Bar Bushings

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

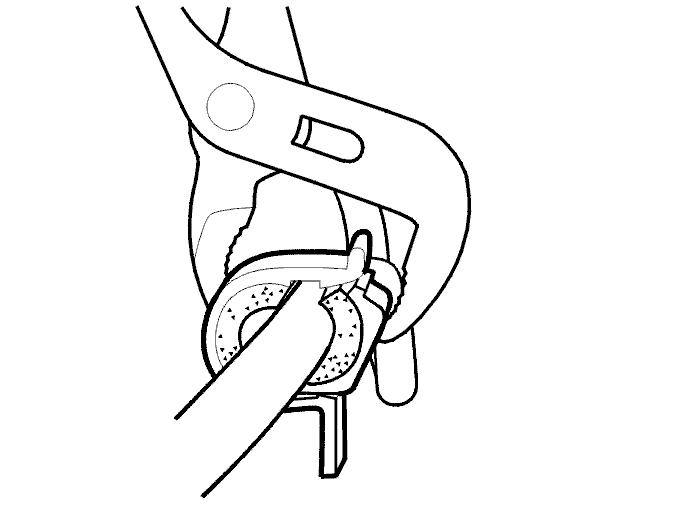

Fig 1: Installing Anti-Roll Bar Bushings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Centrally install the upper section of the bushings with the correct distance between them
The lower section of the bushings.

CAUTION: Do not lubricate the bushings using grease or other lubricants.
