Setting Up the Measurement Apparatus

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

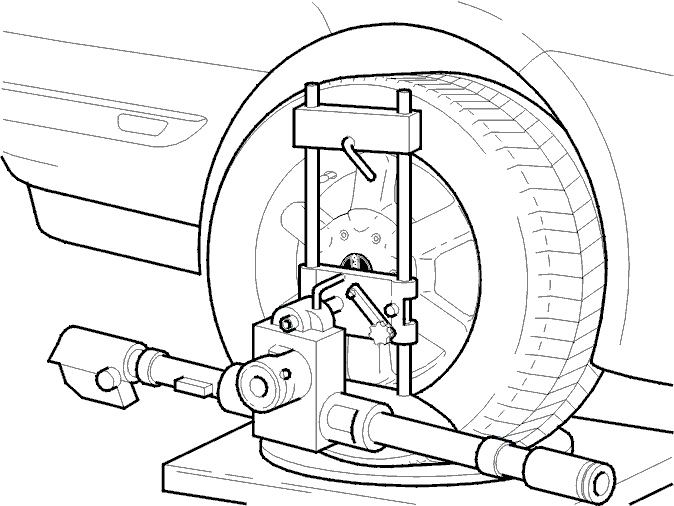

Fig 1: Setting Up Measurement Apparatus

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install and calibrate the test equipment according to the user manual for the test equipment.

NOTE: Always use wheel alignment equipment for four wheel drive cars.

Position turntables under the front wheels. Use turntables which take up lateral movement.

NOTE: The car must be in the horizontal position to obtain the correct values when checking the camber angles and the caster angles.

Bounce the front suspension heavily a few times when the car has sunk onto the turntables. This must be carried out for the front suspension to resume the normal position.
