Checking For Play In the Rear Suspension

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

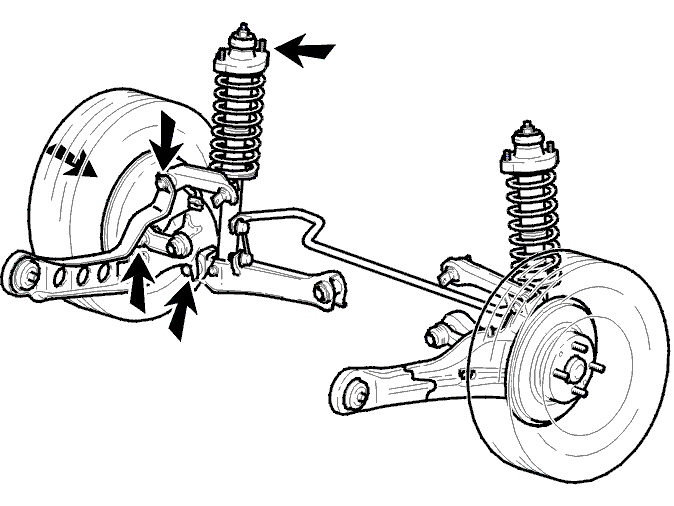

Fig 1: Checking For Play In Rear Suspension

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift up the rear suspension.

Lift at the jacking point for the jack.

Check that there is no play in:

the wheel bearings
the upper spring strut mountings
the trailing arm rubber bushings.

If there is play in any of the components above, this must be remedied first according to the service information in VIDA.
