Checking For Play In the Front Suspension
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

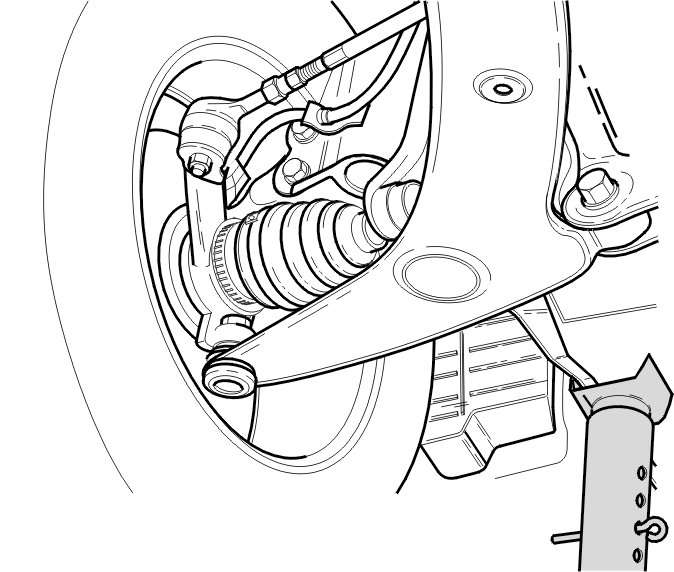

Raise the front end.
Lift at the jacking point for the jack.
Check that there is no play in:
- the steering gear housing and ball joints for the tie rod
- the wheel bearings
- the upper spring strut mountings
- the ball joints and the bearing bushings for the mounting arms.
If there is play in any of the components above, this must be remedied first according to the service information in VIDA.
