When replacing boots

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

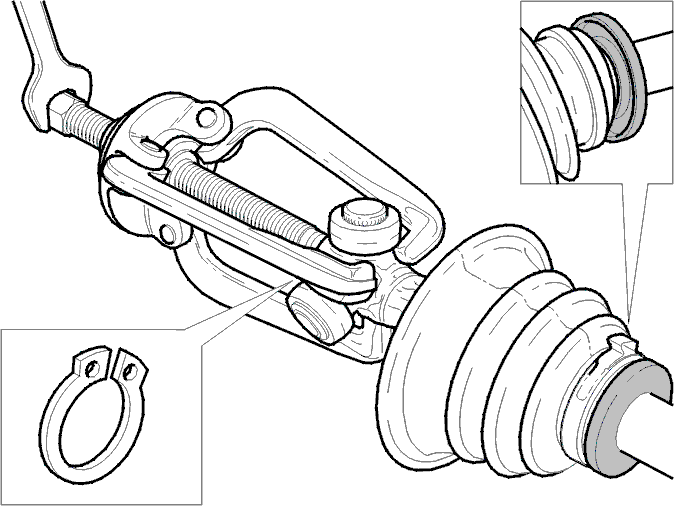

Fig 1: Removing Snap Ring, Tripod With An Extractor For Tripods, Boot From Drive Shaft & Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark up the tripod in relation to the drive shaft.

Remove:

the snap ring
the tripod with an extractor for tripods
the boot from the drive shaft
the clip.

Carefully pull the boot over the bearing.

NOTE: Remove the steel ring from the boot if necessary.
