Removing the tripod housing from the drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

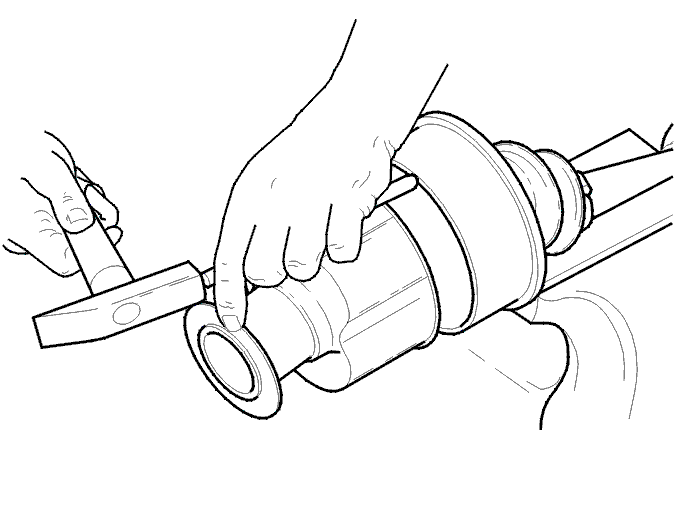

Fig 1: Removing Tripod Housing From Drive Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press out the lock for the tripod housing. Use a pipe wrench (position the pipe wrench against the tripod housing). Carefully tap the outer ring down. Do not damage the ring on the tripod housing.

Remove the tripod housing.
