Removing the tripod from the drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

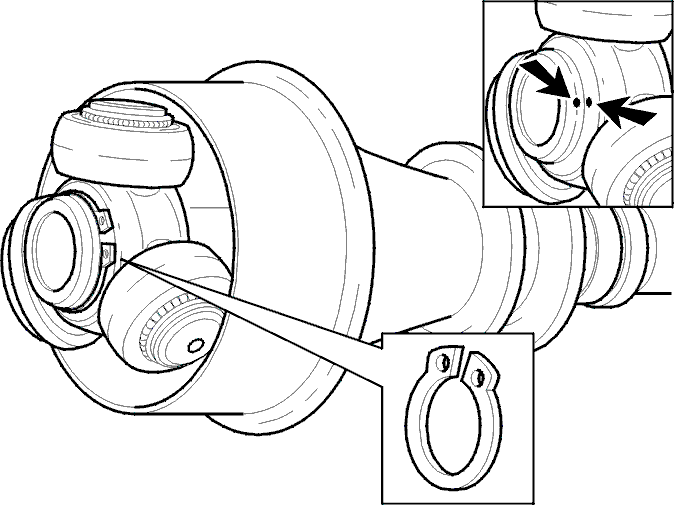

Fig 1: Removing Tripod From Drive Shaft
GLL116091Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

When replacing old components, mark out the position of the tripod in relation to the drive shaft.
