Installing the tripod

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

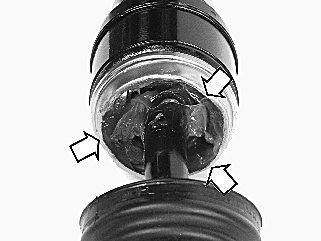

Fig 1: Applying Grease Into Constant Velocity Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the tripod in the constant velocity joint as marked.

Tap the metal tabs back into place.

CAUTION: Take care when restoring the collar. There must be no sharp edges or burring.

Apply the rest of the grease into the constant velocity joint.
