Installing the tripod on the drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Installing Tripod On Drive Shaft

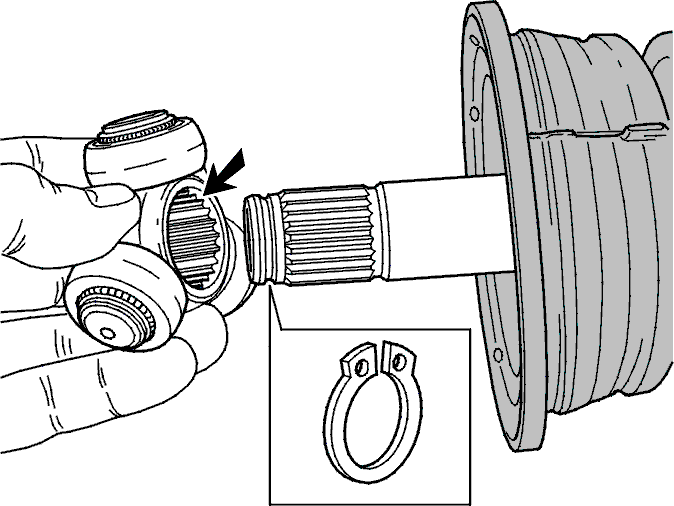

GLL116088Courtesy of VOLVO CARS OF NORTH AMERICA.

Tap the tripod into its seating. Use tool 9995519 .

Install the snap ring.

Lubricate the tripod.

NOTE: There must not be any play between the rollers on the tripod or between the tripod and the splines.


Fig 1: Installing Tripod On Drive Shaft

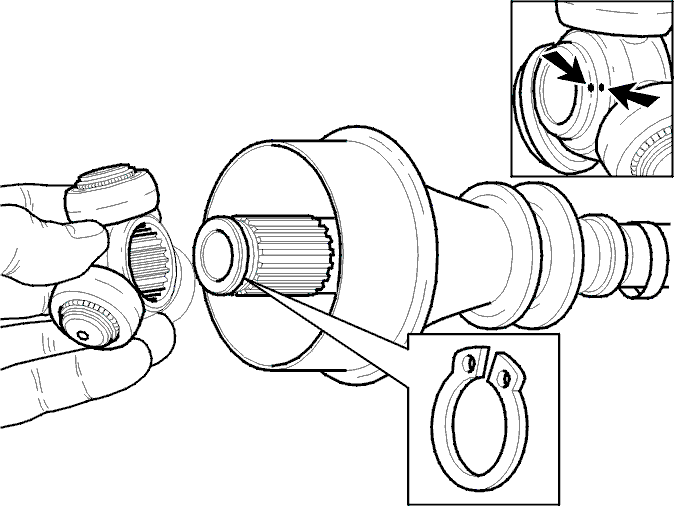

GLL116093Courtesy of VOLVO CARS OF NORTH AMERICA.

Tap the tripod into its seating. Use tool 9995519 .

NOTE: Note the markings.

Install the snap ring.

Lubricate the tripod.
