Installing the constant velocity joint on the drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

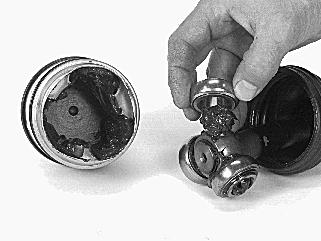

Fig 1: Installing Constant Velocity Joint On Drive Shaft
GLL126294Courtesy of VOLVO CARS OF NORTH AMERICA.

Grease the lugs on the tripod. Install the needle bearings on the tripod. Apply grease in the constant velocity joint, total 120 g. Use grease P/N 1161 029-2.

NOTE: Different types of grease must not be mixed.
