Installing the boot and tripod
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Install:
- a new boot on the drive shaft
- the tripod as marked.

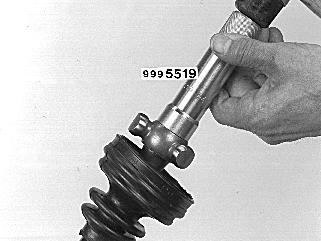

Tap the tripod into its seating. Use tool 9995519 .
Install the snap ring. Ensure that the snap ring is seated in its groove.
