Installing and securing the boot guard
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

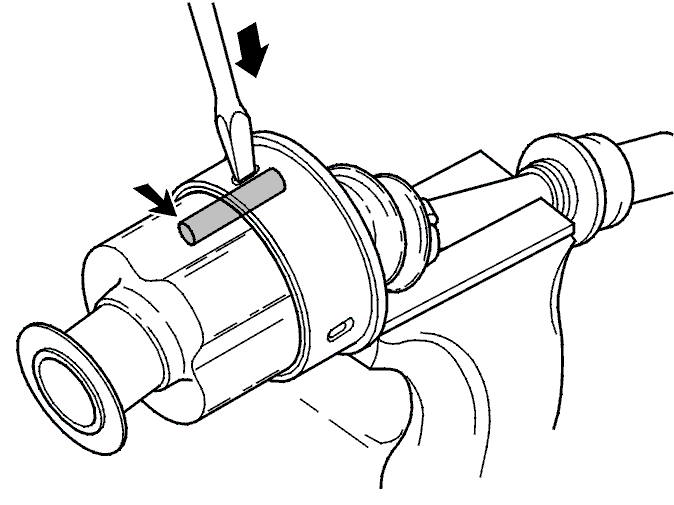

Apply a thin layer of locking fluid on the tripod housing. Slide the steel guard for the boot onto the tripod housing.
Use a drift to carefully tap the steel guard onto the upper part of the tripod housing.
Ensure that the tripod housing bottoms out against the rubber bellow.
Install a support in the opening.
Secure the steel guard at 3 points using a drift.
