Removing components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

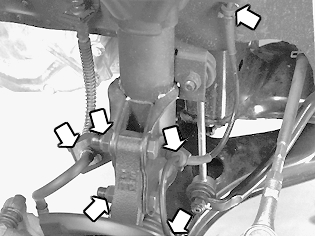

Fig 1: Identifying Wheel Spindle Screws, Brake Hose With Retaining Clip, ABS Sensor And ABS Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The brake hose from the mounting on the spring strut.
The ABS cable from the mounting in the wheel arch and on the spring strut
the ABS sensor
The stub axle from the spring strut.
