Disconnecting the drive shaft from the hub

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

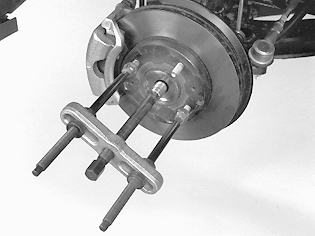

Fig 1: Disconnecting Drive Shaft From Hub
GLL126292Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: If the drive shaft sticks in the hub, tap it with a copper or rubber mallet. If necessary press the drive shaft out of the hub using a universal puller. The drive shaft can be pressed approx 15 mm in.
