Installing the right drive shaft on the Gearbox

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

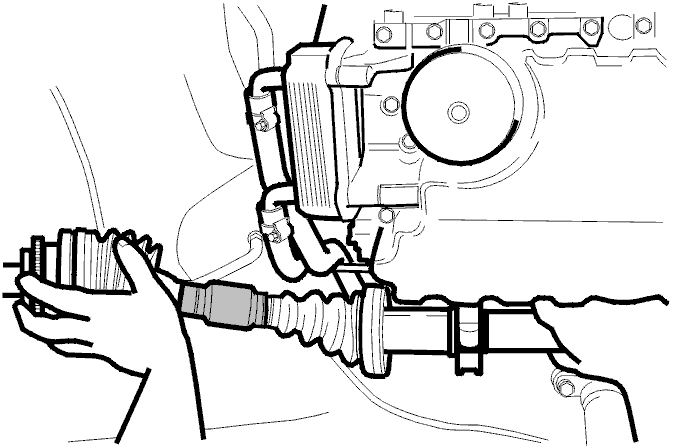

Fig 1: Removing/Installing Right-Hand Drive Shaft
GLL116105Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seal plug.

CAUTION: Do not damage the sealing ring in the transmission or the boot on the drive shaft.

Install new  bearing cap (steel) for the drive shaft support bearing. Tighten to 25 Nm  .
