Installing the left drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

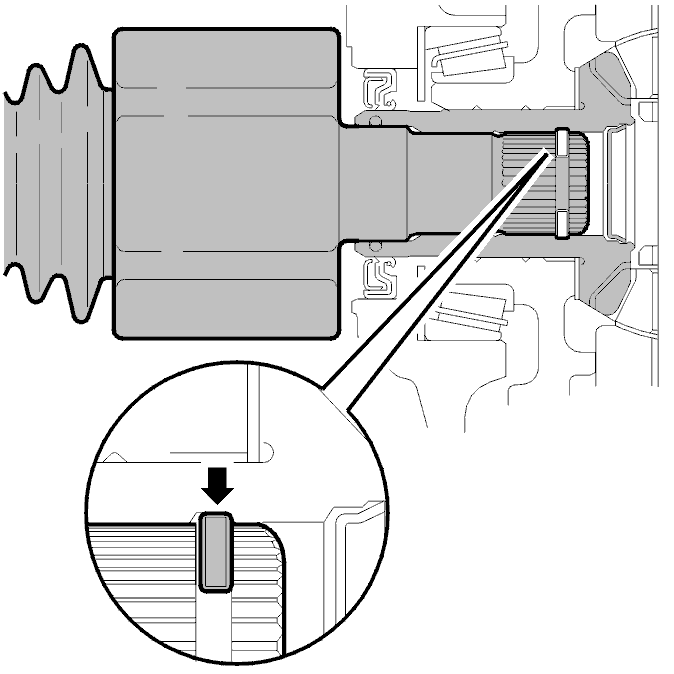

Fig 1: Identifying Left Drive Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that a new expander ring is used.

Ensure that the pulse wheel for the ABS sensor on the drive shaft is clean.

Press in the drive shaft firmly so that the snap ring engages in its groove in the differential gear. Carefully pull the drive shaft constant velocity joint to check that the drive shaft is secure.

NOTE: Do not damage the seal ring in the gearbox and the boot on the drive shaft.
