Removing rear bumper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Splash Guard Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove splash guard mounting (3 clips/screws)
Remove screw A
Disconnect side marker lamp connector
Carry out this procedure on both the left and right hand sides.

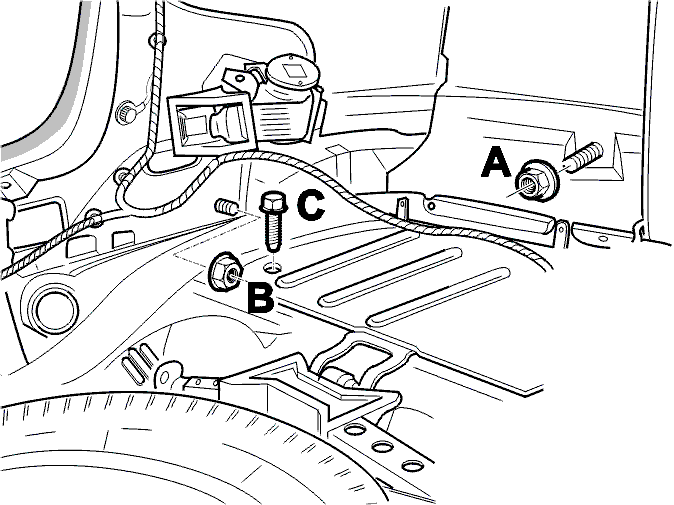

Fig 2: Identifying Nut/Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove nut/screw A, nut B, and screw C
Carry out A, B and C on both the left and the right hand sides.

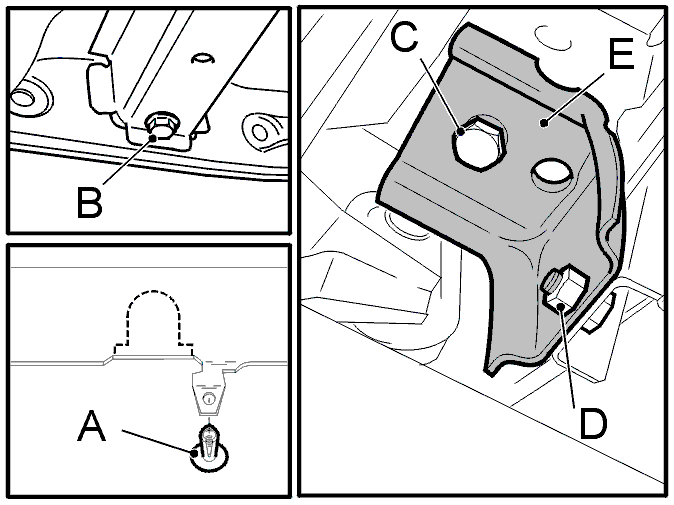

Fig 3: Identifying Clip, Bolts, Nut And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove clip (A) under bumper (if present)
Remove bolt (B) on the left side in the bumper
Remove bolt (C), nut (D) and remove bracket (E) on the right side in the bumper
Remove rear bumper.
