Installing rear bumper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Tape Protecting Paintwork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position tape under tail lamps (and if the car is equipped with a tow hitch also apply tape to the bumper) to avoid damage to paintwork when installing the bumper
Install bumper.

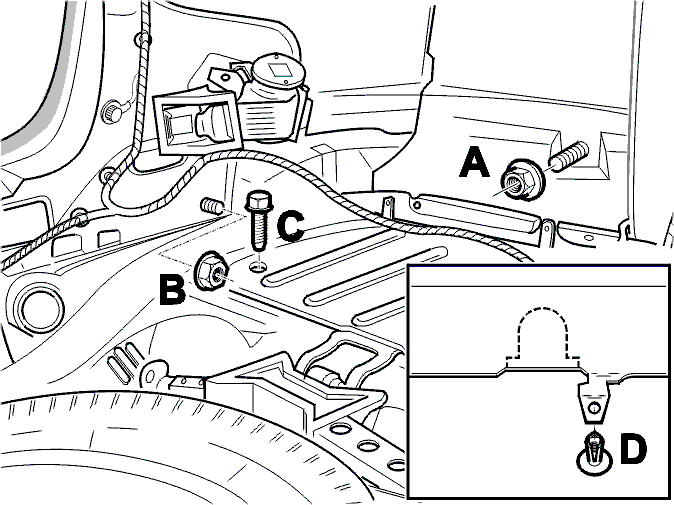

Fig 2: Identifying Nut/Screw And Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install screw/nut A, nut B and screw C (tighten to 50 Nm (37 ft. lbf) on both the left and the right hand sides
Install clip D on underside of bumper (cars with a tow hitch have no clip D).

Fig 3: Side Marker Lamp Connector And Splash Guard Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect connector to side marker lamp
Install screw A
Install splash guard mounting (3 clips/screws).

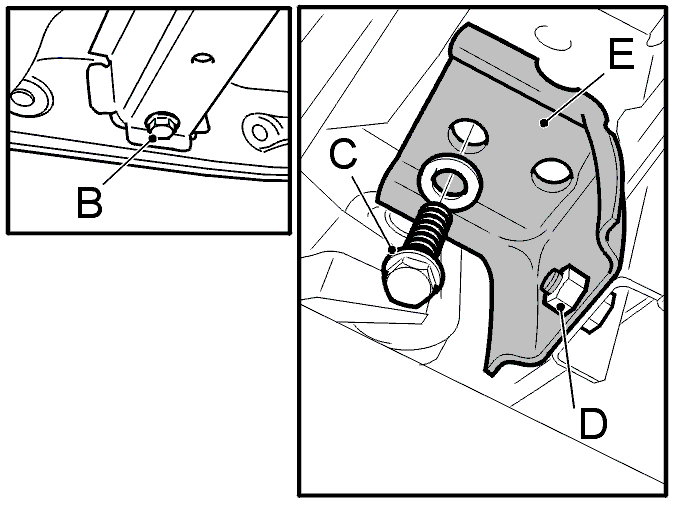

Fig 4: Identifying Bolt, Washer, Nut and Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position bracket (E)
- Mount washer and flanged bolt (C) (M10 x 30) and nut (D), hand tight
- Tighten bolt (C) to 55 Nm (40 ft. lbf) and nut (D) 25 Nm (18 ft. lbf) .
Mount bolt (C) and nut (D) hand tight
- Mount washer and flanged bolt (C) (M10 x 30) and nut (D), hand tight
- Tighten bolt (C) to 55 Nm (40 ft. lbf) and nut (D) 25 Nm (18 ft. lbf) .
Tighten bolt (C) to 30 Nm (22 ft. lbf) and nut (D) 25 Nm (18 ft. lbf)
- Mount washer and flanged bolt (C) (M10 x 30) and nut (D), hand tight
- Tighten bolt (C) to 55 Nm (40 ft. lbf) and nut (D) 25 Nm (18 ft. lbf) .
Only cars with tow hitch:
- Mount washer and flanged bolt (C) (M10 x 30) and nut (D), hand tight
- Tighten bolt (C) to 55 Nm (40 ft. lbf) and nut (D) 25 Nm (18 ft. lbf) .
Mount bolt (B) and tighten to 25 Nm (18 ft. lbf) .
