Installing front bumper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

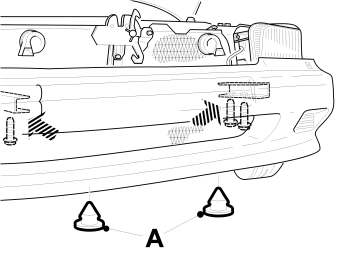

Fig 1: Bumper Clips And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

If applicable:

Fold the headlamp wiper arms forward
- Install the front bumper
- Install the 2 clips (A) for the front bumper
- Install the 4 mounting screws for the front bumper. Tighten to 40 Nm.

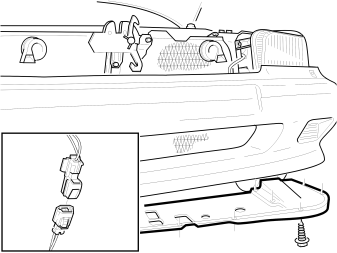

Fig 2: Air Baffle And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connectors for the sidemarker lamps
Connect the connectors for the fog lamps if applicable
Install the front engine splash guard under the engine.

NOTE: If a parking heater is installed, connect the power supply connector at the air cleaner (ACL) and connect the ground lead for the parking heater.

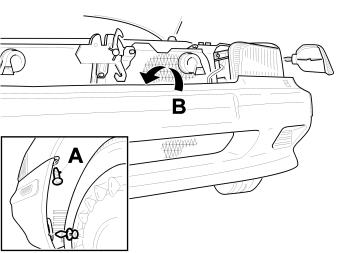

Fig 3: Cable Harness Clip And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install screw A and the right and left retaining clips for the mudguard
Connect the connectors for the outside temperature sensor, horn and headlamp wipers
Connect the connectors for the turn signal lamps. Reinstall the turn signal lamps
Install the covers over the right and left headlamps.
