Disassembling rear bumper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Bumper Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: Do not damage the bumper during disassembly.

V40 only:
Remove the 8 clips and the plastic support on the left and right sides.

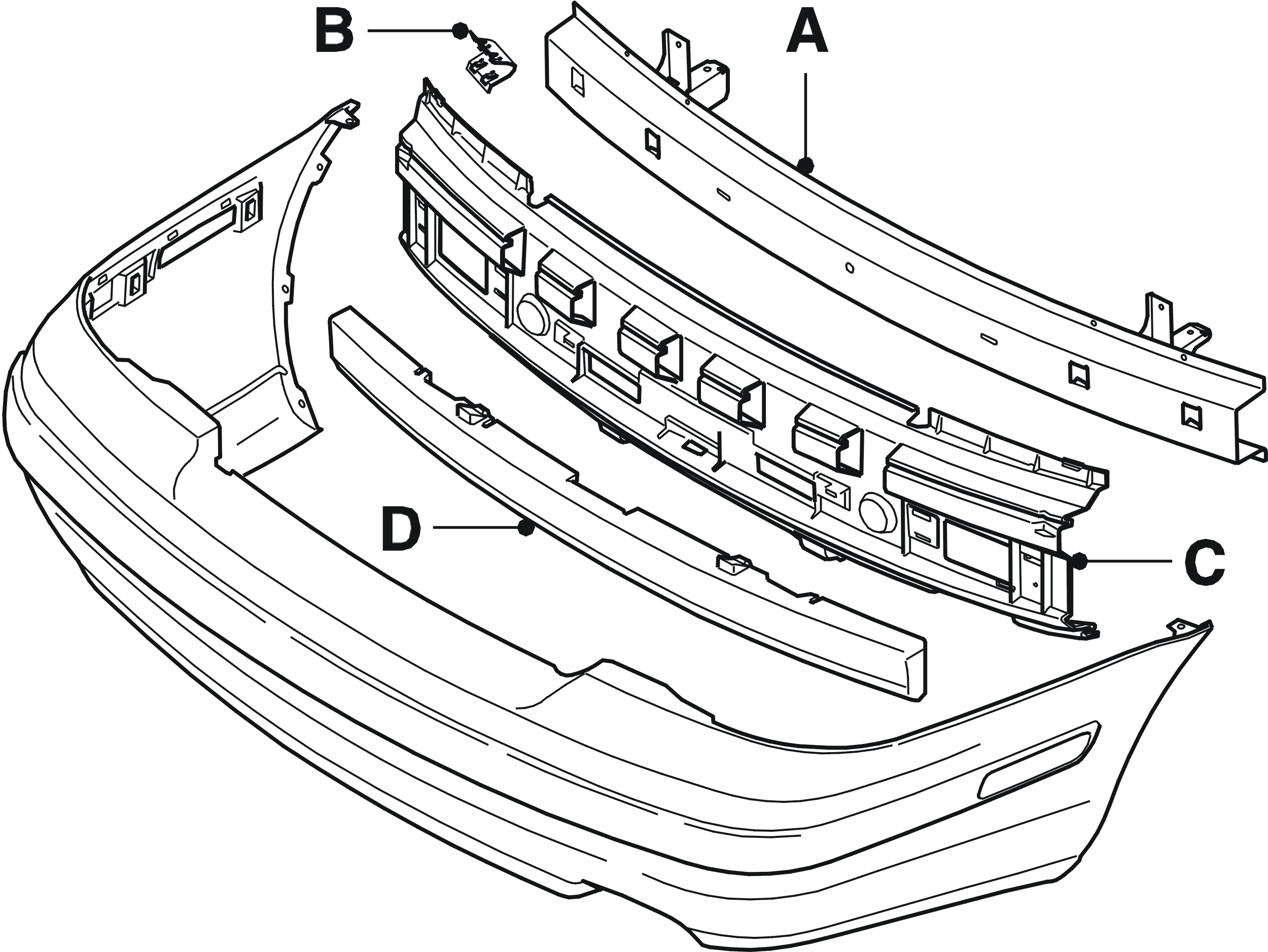

Fig 2: Exploded View Of Rear Bumper

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the lugs. Remove the bracket assembly (E). Start at one end. (Some force is required to remove the bracket)
Remove the two clips (B)
Press in the lugs. Remove the bumper reinforcement (C). Start at one end
Remove the impact absorber (D) from the bumper reinforcement (C).

Fig 3: Side Molding And Side Support

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the sidemarker lamps using tool 9814071
Remove the bulb holder
Remove the side support (E) on the left and right-hand sides
Press in the clips at one end of the inside of the bumper cover. Slide the molding (F) out of the bumper cover
Press in the clips. Remove the molding (F) completely
Remove the foam and clips from the bumper cover.
