Removing rear bumper

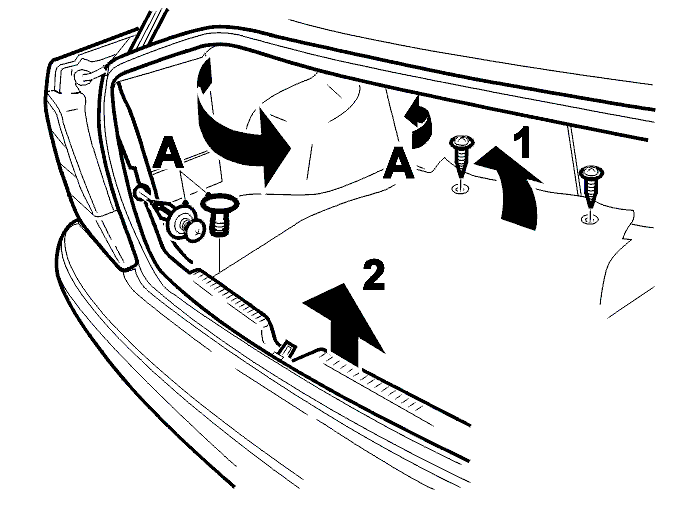

Fig 1: Removing Cargo Compartment Carpet And Rear Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the two screws
• the cargo compartment carpet
• the rear panel
• the clip (A)
• the screw (B).

Turn the panel inwards on the left and right-hand sides.

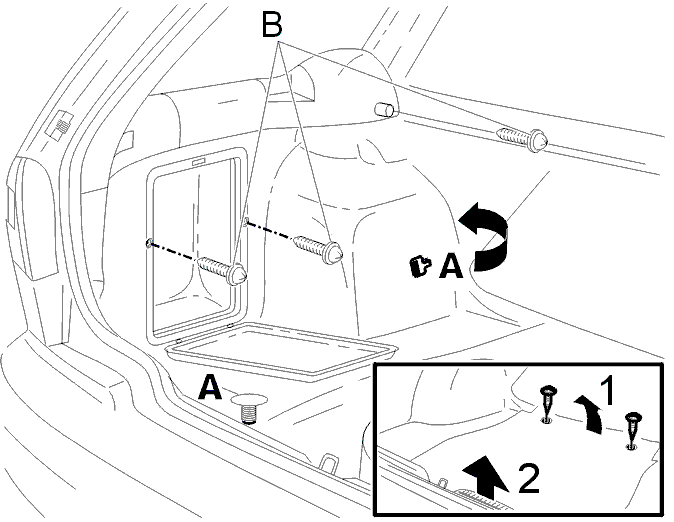

Fig 2: Cargo Compartment Side Panel And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Mudguard And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the three screws for the mudguard.

Remove the screw (A).

Press in the catch. Remove the switch for the parking lamp on the bumper (left and right-hand sides).

Fig 4: Tape Protecting Paintwork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place tape underneath the tail lamp and on the tow hitch to prevent paintwork damage.

Fig 5: Rear Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two nuts (A and B) on the left and right-hand sides.

Remove the screw (C) on the left and right-hand sides.

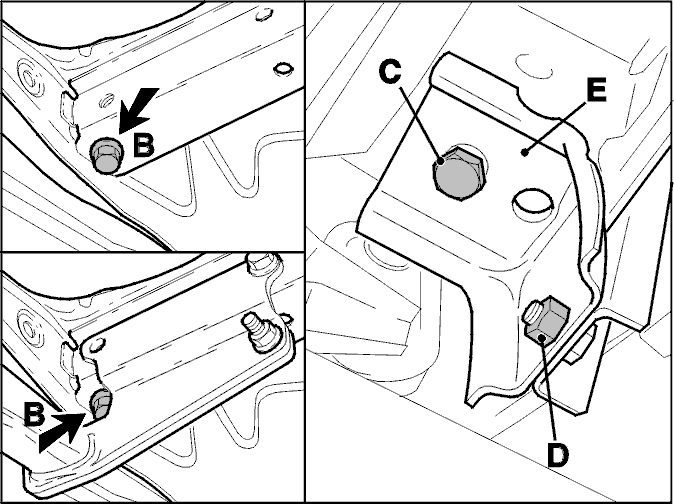

Fig 6: Bumper Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• one screw (B) on the left-hand side
• one screw (C)
• one nut (D)
• the bracket (E) on the right-hand side of the bumper
• the bumper.
