Installing rear bumper

Fig 1: Rear Bumper Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place tape underneath the tail lamps and on the tow hitch to prevent paintwork damage.

Align the bumper with the car body.

Install:

• the screw (C). Tighten by hand
• the two nuts (A and B). Tighten by hand.

Tighten the screw (C). Tighten to 50 Nm  . Tighten the nuts (A, B). Tighten to 5 Nm  on the left and right-hand sides.

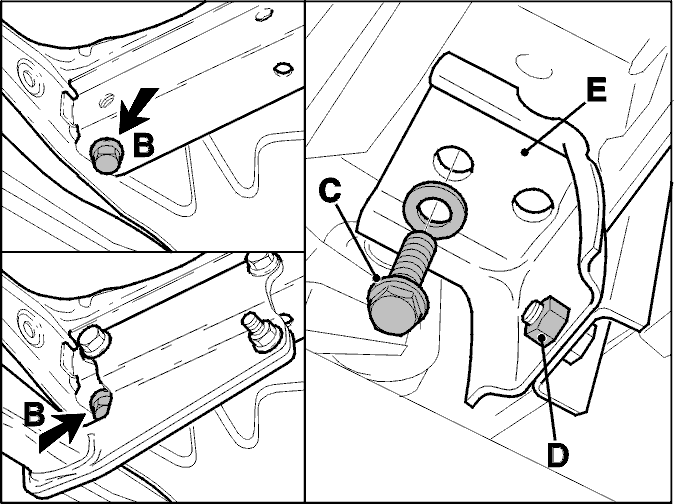

Fig 2: Bumper Bracket And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the bracket (E)
• the screw (C) and the nut (D). Tighten by hand.

Tighten the screw (C). Tighten to 30 Nm  . Tighten the nut (D). Tighten to 25 Nm  .

Cars equipped with a tow hitch

Install the washer and the flanged screw (C) and the nut (D). Tighten by hand.

Tighten the flanged screw. Tighten to 55 Nm  . Tighten the nut. Tighten to 25 Nm  .

Install the screw (B). Tighten to 25 Nm  .

Fig 3: Mudguard And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector for the parking lamps on the right and left-hand sides.

Install the screw (A) on the left and right-hand sides.

Install the mudguard on the left and right-hand sides using the three screws.

Fig 4: Installing Cargo Compartment Side Panel And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Installing Cargo Compartment Side Panels

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the panel
• the screw (B)
• the clip (A)
• the rear panel
• the cargo compartment carpet
• the two screws.

Clean the bumper.
