Installing protective film
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Protective film should be applied to the bodywork to avoid damage to the paintwork on the bodywork caused by the bumper cover.

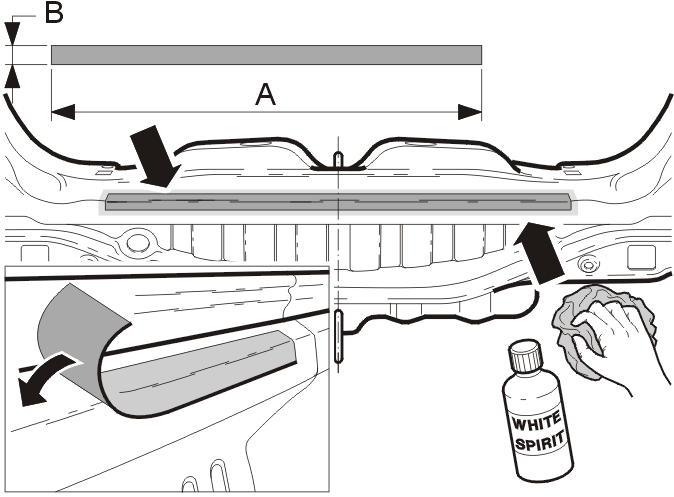

Clean the surface under the bumper cover where the protective film is to be installed as shown.
Use protective film P/N 951 1089.
Cut a piece that is 500 mm long (A) and 25 mm wide (B).
Install the protective film as shown. Start 5 mm from the tailgate/edge molding.
Ensure that there are no air bubbles between the protective film and the bodywork.
