Removing front spoiler

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Splash Guards Under Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing the splash guards under the engine compartment

Remove the screw and clip from the front splash guard.

Carefully bend the outer spoiler bracket (A) downwards on the left and right sides.

Remove the front splash guard.

Fig 2: Wheel Liner Screw And Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing the clip

Remove the screw (A) and clip (B) on the left and right sides.

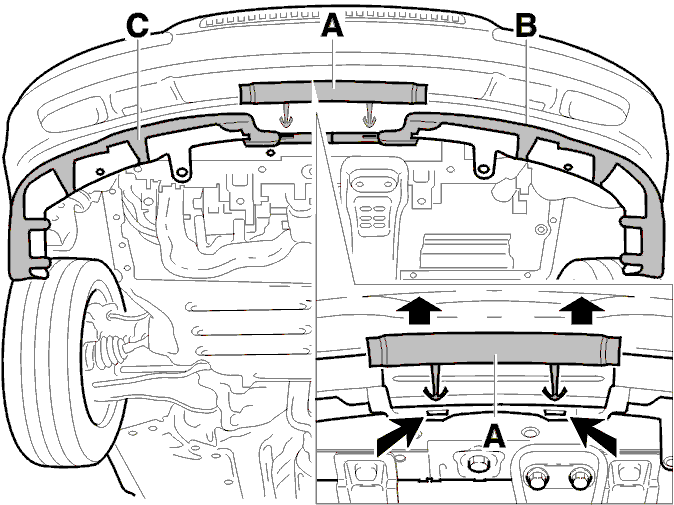

Fig 3: Spoiler Parts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing spoiler parts

Press the locking flange in and pull off the middle part (A) of the spoiler.

Remove the bolts from the inside and underside.

Carefully remove spoilers B and C.
