Fitting front spoiler

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

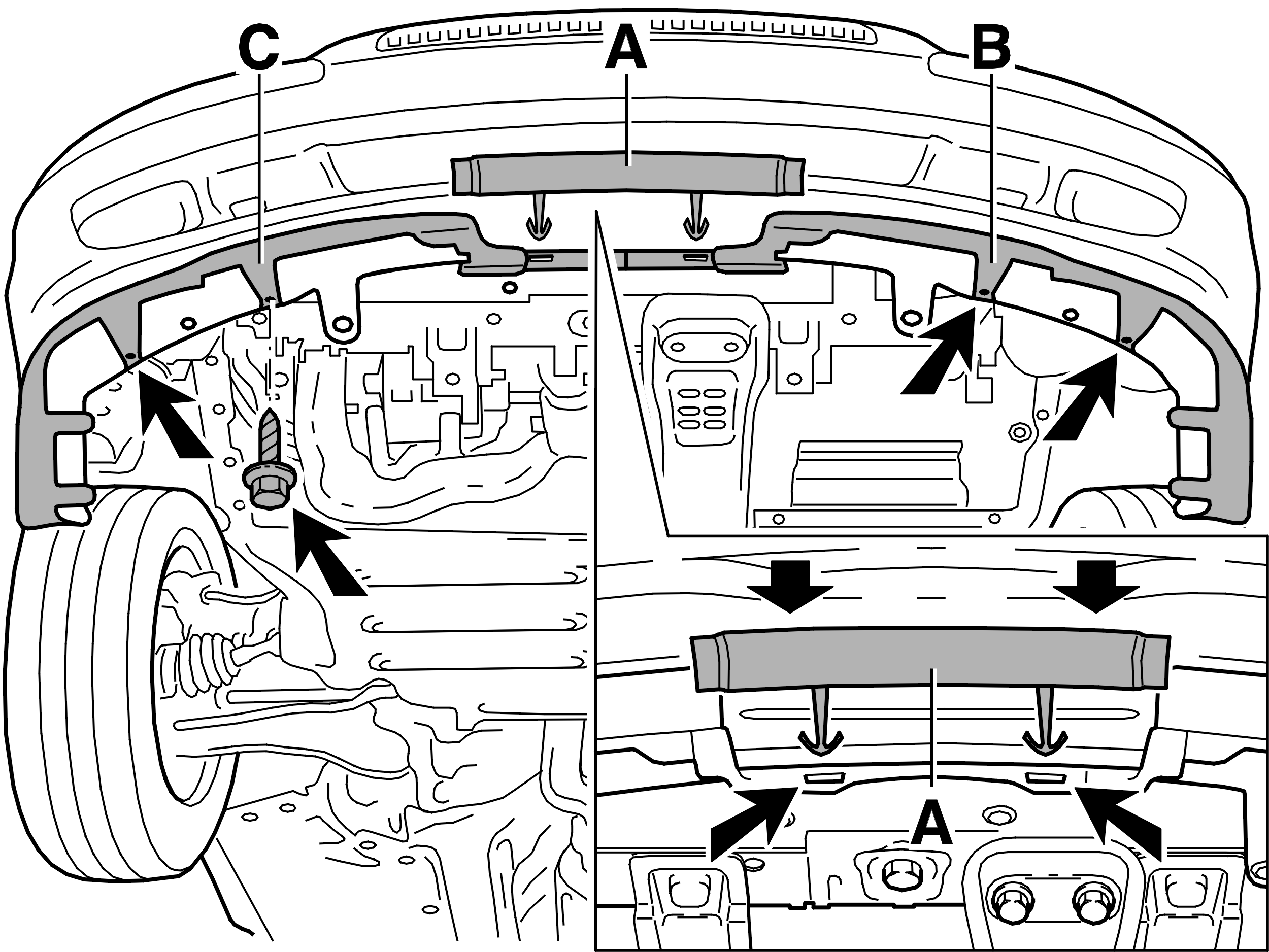

Fig 1: Fitting Spoiler Parts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the surface where the spoiler is to be mounted.

Fit spoiler (B) and tighten the bolts by hand.

Fit spoiler (C) and tighten the bolts by hand.

Press spoiler (A) in place between spoilers (B) and (C).

Adjust the spoilers (A, B, C) on the bumper.

Tighten bolts to 6 Nm .

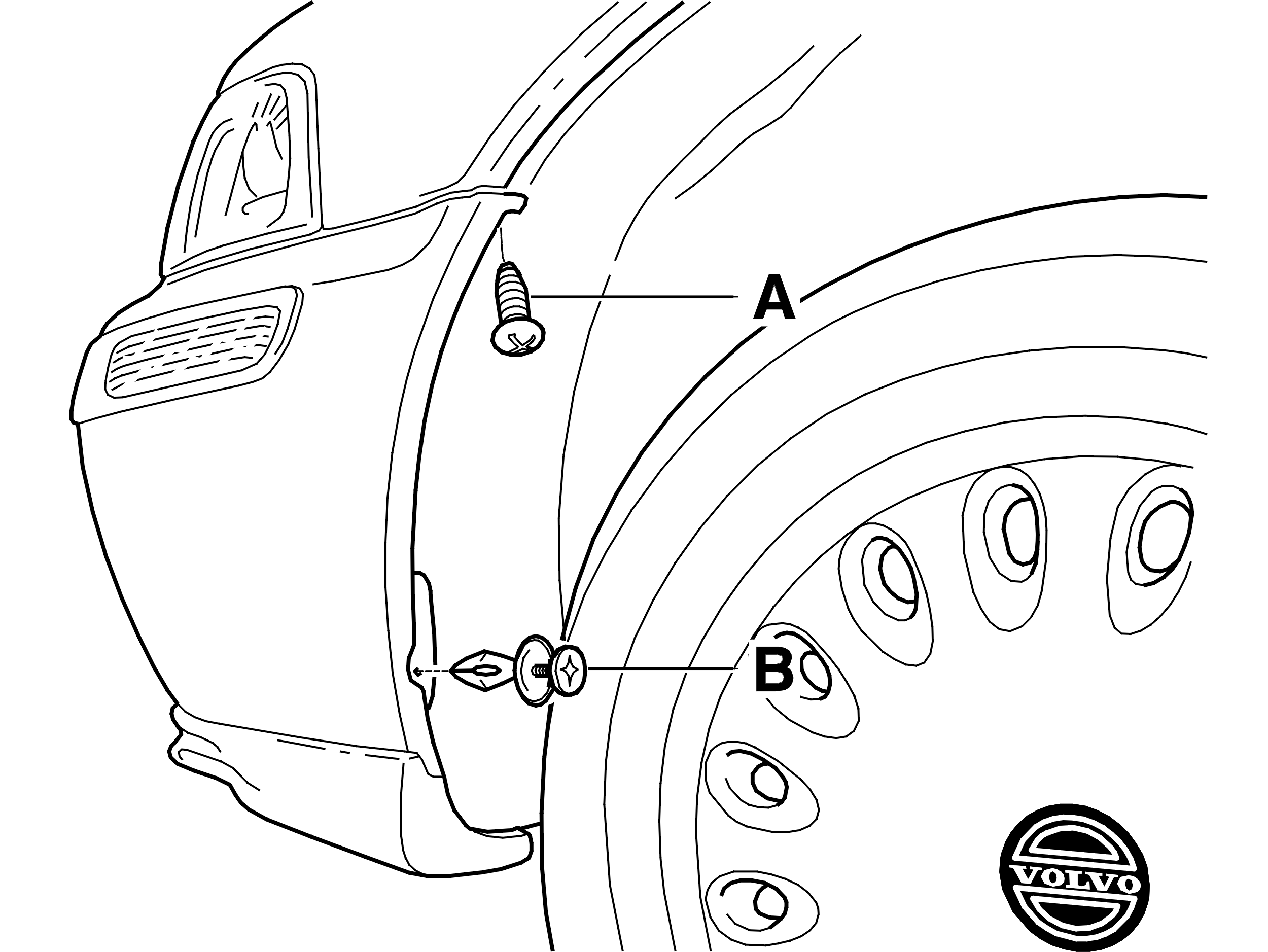

Fig 2: Wheel Liner Screw And Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fitting the clip

Fit screw (A) and clip (B) on the left and right sides.

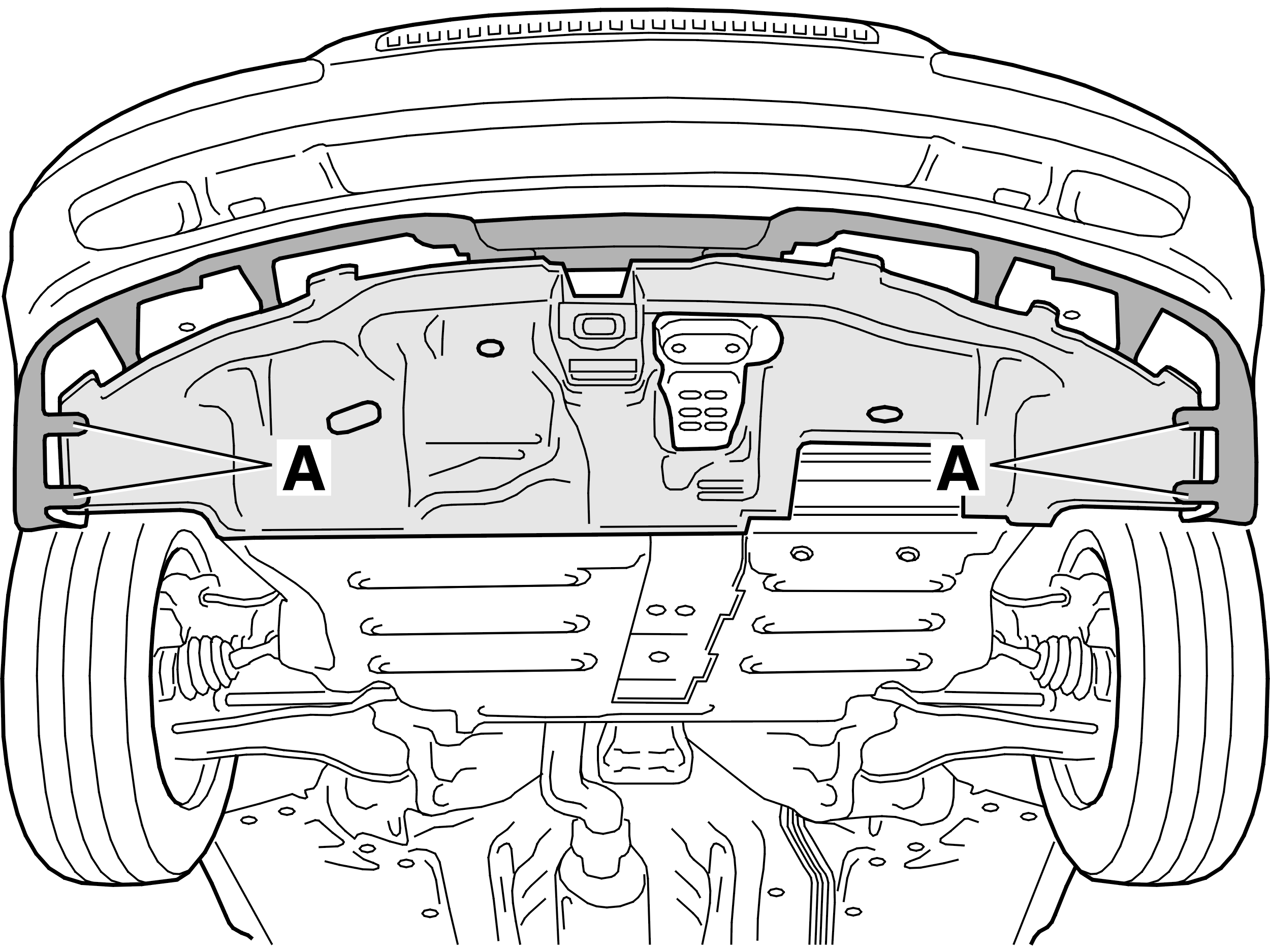

Fig 3: Splash Guards Under Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fitting the splash guards under the engine compartment

Fit the front splash guard

Carefully bend the outer spoiler bracket (A) downwards on the left and right sides.

Fit the screw and clip for the front splash guard.
