Preparatory Work: Notes

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

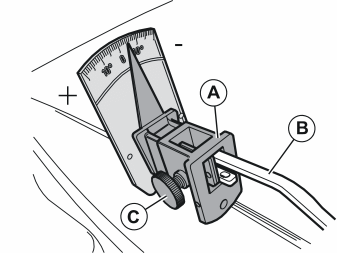

Fig 1: Installing Tool On Wiper Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the wipers are in the parked position. Switch the wipers on and off again with the ignition switched on.

Fold out the wiper arm.

Remove the wiper blade.

Install the tool (A) on the wiper arm (B), as shown.

Tighten the tool (A) to the wiper arm (B) using screw (C).

Fold the wiper arm and tool towards the windshield.
