Adjusting the Wiper Arm
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Read the angle of the wiper arm to the windshield from the scale of the tool.
The correct angle is within the following range:
LHD -3° to -5°
RHD +3° to +5° .
CAUTION:
Do not damage the wiper arm surface. Use tape to protect the wiper arm.

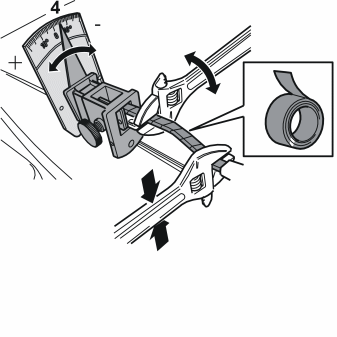

Adjust the angle of the wiper arm to -4° or +4° as necessary. Turn the wiper arm using two wrenches as shown.
Fold the wiper arm out and remove the tool.
Install the wiper blade and fold the wiper arm down.
Test the function.
